AVIS-800R is an Automatic Vision
Inspection System for both of pattern defects (AOI) and SR defects
(AFVI) on COF/TAB, TBGA, H2BGA, FBGA with highest inspection
productivity and accuracy.
Since its first successful installation in mass prodction line
in 2000, AVIS-8000R has been enjoying a good Reputation in the
market oqing to the most reliable inspection capability as well
as good technical service. |
 |
|
Location of AVIS-8000
- Post Etching or Sn-Plating (AOI)
- Post SR (AFVI) |
|
|
 |
|
Highest Inspection Productivity
- 50mm/second at 5.0㎛/pixel resolution
- 30mm/second at 3.5㎛/pixel resolution
- 16mm/second at 2.5㎛/pixel resolution
Highest
Camera Resolution
- 2.5㎛ ~ 5㎛/pixel (easy to change)
Minimum
Over-Rejection rate
Special
devices in order to overcome bow & twist of tape materials
off-line Teach server
(network with multiple number of AOI/AFVI)
CAM
data interface Teach (less than 1 hour)
Field-Proven AOI/AFVI system since 2000 |
|
|
 |
|

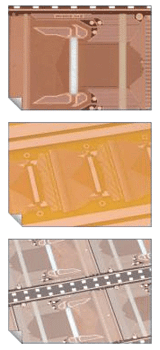

Products
inspected |
TAB/COF,
TBGA, H2BGA, FBGA |
Tape
dimension |
35,
48, 70, 96, 105 and 158mm Tape width (Wide & Super
Wide) |
Camera
Resolution |
2.5μm,
3.5μm, 5μm/pixel (easy to change) |

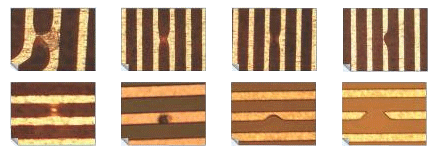

Inspection
ltems |
Open,
Short, Protrusion, Mouse-Bite, Bottom Short,
Top Etching Pit/Pin Hole, Non-Plating, Discolor, Foreign
Material |
Line/Space |
10/10μm
products is inspected |
Teach
method |
CAM
data programming(Gerber RS-274 X format) |
Utility |
AC220,
1phase, 60Hz, 5kgf/cm2, 4Kw |
|
|
|
