- High-End Stamped or Etched Lead
Frame (both Cu & Ni material)
- Products : MLF, MLP, QFN, QFP and others |
|
|
 |
|
|
- Surface (Top & Bottom side), 2D Geometry inspection
- 3 sets of High Resolution Line Scan CCD Camera

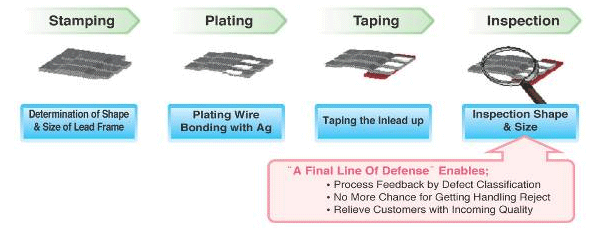

- Minimize handling defects on Lead Frame
- Relieve Customers with Incoming Quality
- Higher Inspection Productivity
- Low Over-Rejection
- PC based Hardware Control
|
|
|
 |
|
Products
inspected |
QFP,
MLP, QFN (ILP < 150) |
Dimension |
20~80mm(W),
150~250mm(L) |
Resolution |
10~15um/pixel |

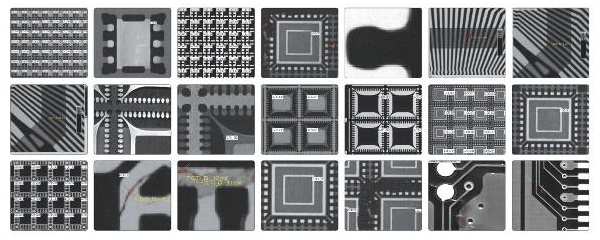

Inspection
Item |
Surface |
|
Plating Position,
Pit/Slug, Foreign Matetrial
Contamination, Oxidation |
|
|
|
Profile |
|
Lead Spacing, Lead
Width, Lead Shift, Lead Bent,
Pad Shift, Under/Over Etch, BridgingTape Width,
Tape Position |
|
|
|
Others |
|
No Downset, Die Pad
Tilt, No Tape |
|
Utility |
AC
220V, 1 phase, 60Hz, 5kgf/cm2, 4kw |
|
|
|
